Mapping Vaia windthrow when salvage was a race against the timber's own value
The Vaia storm flattened 42,525 hectares of Alpine forest and collapsed the roundwood market. Salvage depended on reaching the right stands first, and the emergency mapping activation covered under a tenth of the damage.
- Site
- Val di Fiemme and Paneveggio
- Storm
- 29 Oct 2018
- Scenes used
- 5
- Control
- 543 ha
- Canopy lost
- 9,937 ha
- Patches
- 1,903
- Ratio to control
- 18×
- Available
- +10 months, from the archive
The problem
A quarter of Trentino's forest road network was gone, stumpage had fallen 69 per cent, and the emergency mapping activation covered about 4,000 of 42,525 damaged hectares.
What we did
An exact anniversary pair, 27 August 2018 against 27 August 2019, restricted to ground that was closed forest canopy before the storm, with a second pre-storm pair as the control.
The result
9,937 hectares of lost canopy in 1,903 patches against 543 hectares from the control, at the scale a replanting and road programme is actually planned on.
Overview
On the evening of 29 October 2018 a scirocco gale came over the Dolomite ridges from a direction those valleys had never seen and flattened 42,525 hectares of forest. Eight and a half million cubic metres of spruce hit a market that could absorb a fraction of it. Stumpage prices fell 69 per cent.
A deep Mediterranean low had forced a south easterly wind over the Alpine barrier, which is why stands with no history of windthrow failed. Regional stations recorded gusts of 192 km/h on Monte Cesen and 190 at Passo Manghen, with 715 mm of rain in seventy two hours at Soffranco.
What fell was overwhelmingly Norway spruce: shallow rooted, even aged, dense and monospecific, favoured over centuries. That is also why the event did not end in 2018. The fallen timber bred bark beetle, and the attacks on standing trees came not in the first year but in the third. By 2024 the beetle had taken roughly as much forest as the storm.
The challenge
Spruce sapwood stains within months of felling, so salvage is a race against the timber's own value. Prices went the way an unmanaged glut always goes: stumpage down 69 per cent and roadside prices down 37, from €80 to €90 a cubic metre to €10 to €20, against damaged roundwood amounting to roughly seven times the annual throughput of the entire Italian sawmilling sector.
Access was the binding constraint. About 1,200 kilometres of Trentino's 5,000 kilometre forest road network was damaged. The province programmed more than 1,600 kilometres of road restoration plus 80 kilometres of new road purely to reach felled stands, and roughly 450,000 cubic metres were eventually written off as unrecoverable because no machine could get to them.
The mapping to support that triage was thin. The emergency mapping activation covered about 4,000 hectares, under a tenth of the damage. The national inventory was assembled from field survey and helicopter overflight across five regions on inconsistent methods and harmonised centrally afterwards, putting the loss at 42,525 hectares across 494 municipalities, with some individual municipalities losing 47 per cent of their forest.
What we did
The analysis covers the Val di Fiemme, the Val di Fassa and Paneveggio, about 32 by 33 kilometres of Trentino holding several of the worst hit valleys.

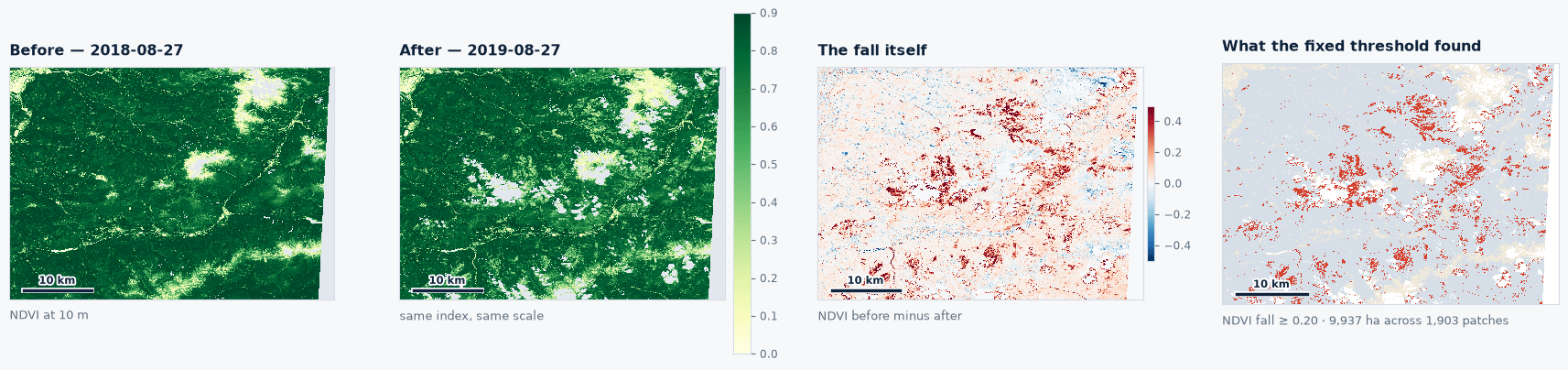

The comparison is an exact anniversary, 27 August 2018 against 27 August 2019: same day of year, same solar geometry, same phenological stage, both scenes under 5 per cent cloud. In terrain this steep that matters more than usual, because a month's difference in sun elevation deepens shadow in narrow valleys enough to move a vegetation index on its own.
Scoring runs only over closed forest canopy, ground whose vegetation index stood above 0.6 before the storm. That removes alpine meadow, scree and rock, which change far more between June and August than a spruce stand does, and without it a control in this terrain means nothing.

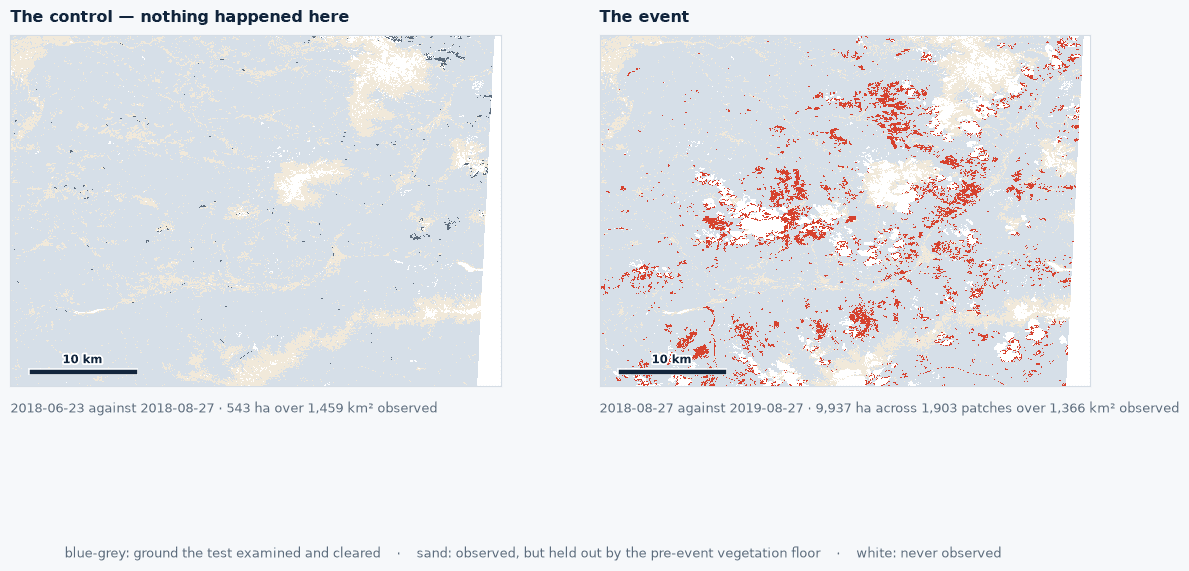

The control is a second pre-storm pair, 23 June against 27 August 2018, spanning a whole alpine growing season in which nothing happened. It is the harder of the two comparisons to pass, and every figure below is quoted against it.
The published research on this event converges on the same window. A 2021 study using continuous change detection across six regions found reliable detection only from seven to twelve months after the storm, for the reasons the emergency service struggled with: snow, shadow and cloud make anything earlier unreliable.
What the imagery showed
| comparison | months after storm | forest observed | canopy lost | patches | largest patch |
|---|---|---|---|---|---|
| 23 Jun vs 27 Aug 2018, the control | before | 543 ha | 31 ha | ||
| 27 Aug 2018 vs 28 Jun 2019 | +8 | 1,265 km² | 13,785 ha | 3,050 | 488 ha |
| 27 Aug 2018 vs 23 Jul 2019 | +9 | 1,237 km² | 12,449 ha | 2,539 | 492 ha |
| 27 Aug 2018 vs 27 Aug 2019, the anniversary | +10 | 1,219 km² | 9,937 ha | 1,903 | 301 ha |
Ground counts as lost where the vegetation index falls by 0.20 or more, over ground that was closed forest canopy beforehand. The anniversary pair is the figure to quote.

The control returns 543 hectares across a full growing season, its largest patch 31 hectares. The anniversary pair returns 9,937 hectares in 1,903 separate patches, eighteen times that, and the largest single patch is 301 hectares. That distribution is the right shape for this event: Vaia did not carve one scar, it knocked out hundreds of stands across dozens of valleys.

The measured area falls through the summer of 2019, from 13,785 hectares in June to 12,449 in late July to 9,937 in late August. Ground vegetation colonises a windthrow fast, and grass and shrub on the forest floor push the index back above the threshold within a season. The anniversary pair is both the most conservative figure and the only one where phenology is properly matched.
| quantity | figure | source |
|---|---|---|
| Forest destroyed or heavily damaged | 42,525 ha across 494 municipalities | national inventory, field survey and helicopter, harmonised centrally |
| Trentino-Alto Adige share | about 22,000 ha | same |
| Trento province, 2024 harmonised stocktake | about 11,500 ha | regional forest services |
| Timber felled | 8.5 to 9 million m³ | national inventory, flagged by its authors as a soft estimate |
| Peak gust | 192 km/h, Monte Cesen | regional environmental agency |
| Stumpage price fall | −69% for spruce | peer reviewed roundwood market study, 2021 |
| Emergency mapping coverage | about 4,000 ha, under 10% of the damage | published assessment of the activation |
What it means
What this measures is canopy that is no longer there. By the summer of 2019 Trentino had already moved 2.1 million cubic metres to market, so cleared ground and flattened ground both count in the 9,937 hectares. For replanting, road sequencing and protection forest assessment that is the right quantity, and it is not a volume: cubic metres depend on stand age, density and species, and the published volume figures for Vaia are themselves area multiplied by regional standing stock tables, a derivation their own authors have criticised in print.
For scale, the harmonised 2024 stocktake credits the whole of Trento province with about 11,500 hectares. Our box covers several of the worst hit valleys rather than the province, so the two are context for each other rather than a scored comparison. No official hectare figure exists for the Val di Fiemme alone.
The scene that answered this was in the archive ten months after the storm, while the salvage programme still had two years to run and six years before the beetle outbreak it seeded was declared over. A forest service sequencing 1,600 kilometres of road repair against a depreciating asset needs to know which stands are worth reaching first, at patch level, across the whole damaged area rather than the tenth of it an emergency activation covered. That map existed in August 2019, and the same anniversary comparison run each summer since would have tracked the beetle outbreak that followed, which by 2024 had taken roughly as much forest again.
Run this on your own ground
Draw an area of interest, pick the dates, and the same analysis runs against the archive over your sites.
References
- Chirici G., Giannetti F., Travaglini D. et al. (2019). Stima dei danni della tempesta Vaia alle foreste in Italia. Forest@ 16, 3 to 9. doi.org/10.3832/efor3070-016
- Ministero dell'agricoltura, della sovranità alimentare e delle foreste, Mappatura delle superfici forestali danneggiate dalla tempesta Vaia.
- Giannetti F. et al. (2021). Estimating VAIA windstorm damaged forest area in Italy using time series imagery and continuous change detection algorithms. Forests 12(6), 680. doi.org/10.3390/f12060680
- Economic impacts of forest storms: taking stock of the after-Vaia situation of local roundwood markets in northeastern Italy (2021). Forests 12(4), 414. doi.org/10.3390/f12040414
- Nardi D., Finozzi V., Battisti A. (2022). Danni da vento amplificano un attacco incipiente di bostrico dell'abete rosso nelle Alpi Meridionali. L'Italia Forestale e Montana 77(1), 23 to 34. doi.org/10.36253/ifm-1617
- European emergency mapping service, activation EMSR334, wind storm in north-east Italy, 7 November 2018.
